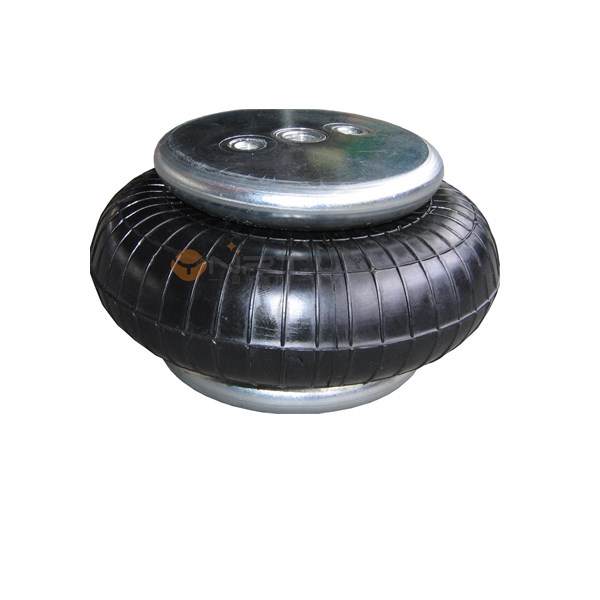

1E70-7 convoluted type

Cross Information: Goodyear:FS70-7 Contitech：1B6-530

HOTLINE:+0532-88371480

PRODUCT DETAILS

.Cross section view :

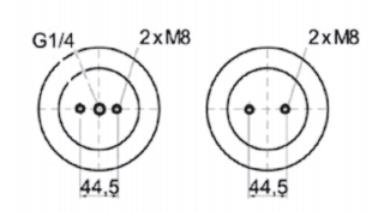

2.Top view/Bottom view:

3.Technical Data:

Weight:1.23kg
Design height:90mm
Deflection(height min):55mm
Deflection(height max):110mm
Working stroke:55mm
Measurement d max:165mm
Space required:180mm
Loading cap.at 3.0bar:2.98KN
Loading cap.at 7.0bar:6.28KN

4.Cross Information:
Goodyear:FS70-7
Contitech：1B6-530

5.OEM Information:
